135compact.com       35mm ultra compact cameras       Maginon Junior AF-1

The Maginon Junior AF-1 is a basic compact camera with an ordinary wide 35mm lens. Launched around 2000, it has 3 flash modes, autofocus and auto exposure, but no advanced features. There was a date version. Its features are:

35mm lens, F4.5, min. focus 1.1m
Size 130x72.5x48.6,  Weight 200 gr.
auto DX, only 2 cantacts, 100 or 400 ISO, auto wind, rewind via switch, autofocus and AE, flash

jpg/maginon_junior_af1_IMG_20260719_145310235.jpg

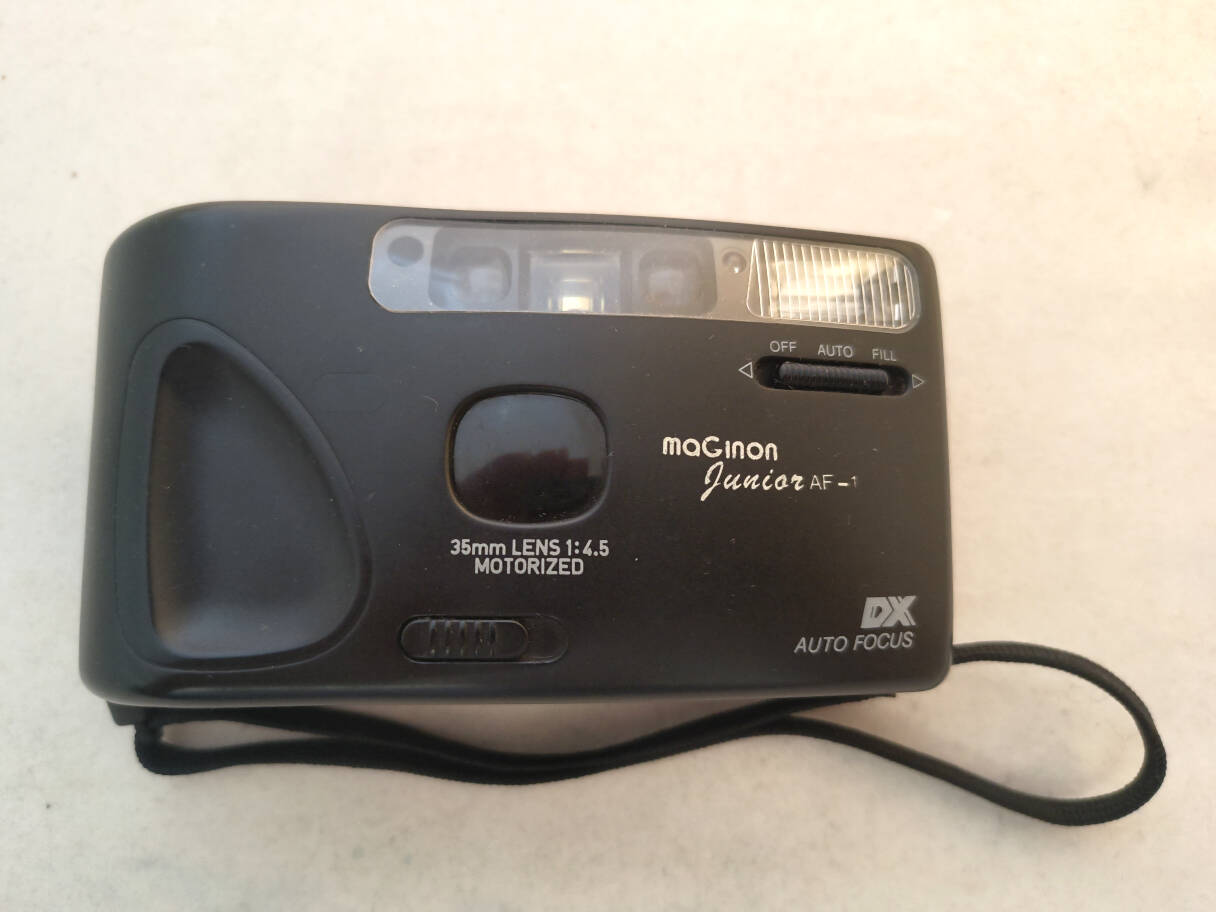

Front closed. Strap.

jpg/maginon_junior_af1_IMG_20260719_145446613.jpg

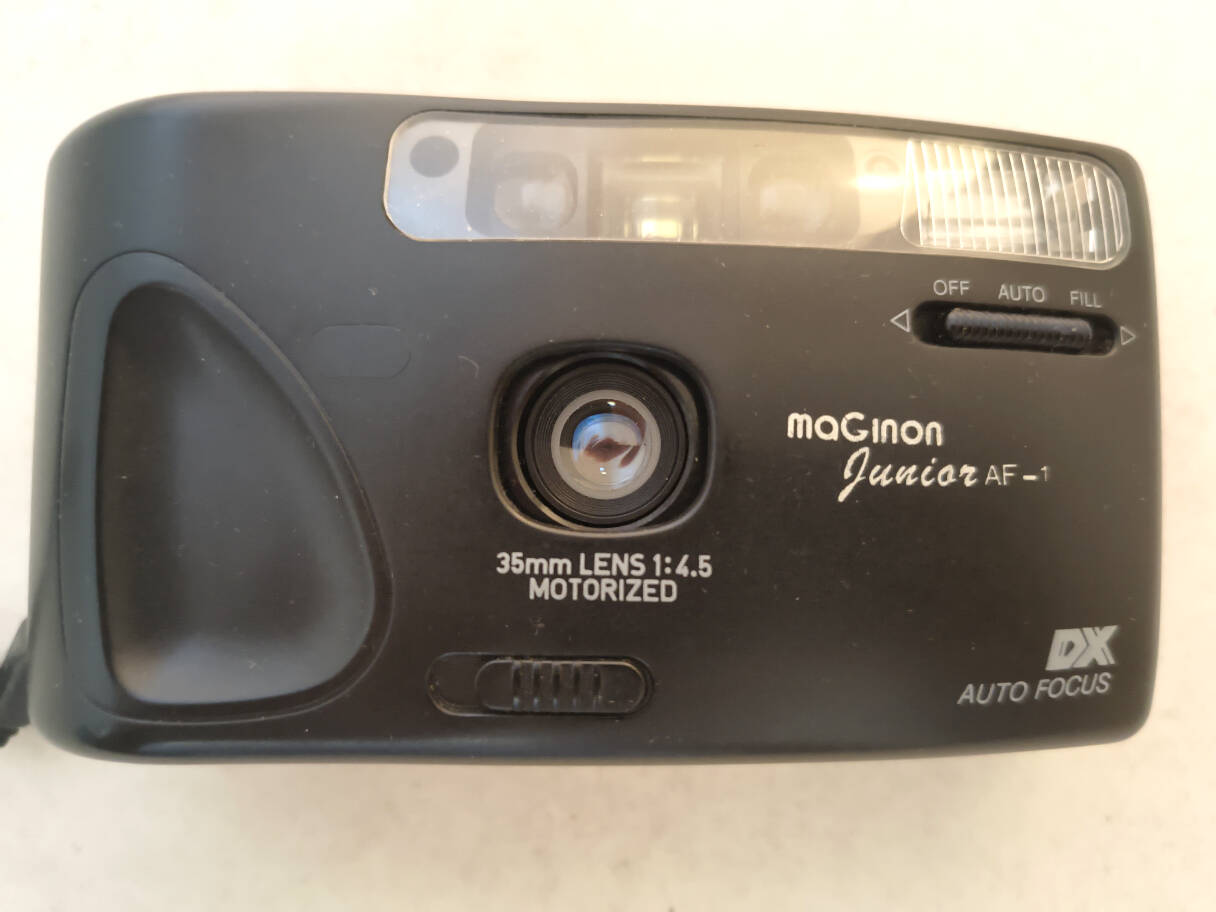

Front open. Flash slider. Flash fires automatically, but can be forced or suppressed via holding the slider to either side.

jpg/maginon_junior_af1_IMG_20260719_145508188.jpg

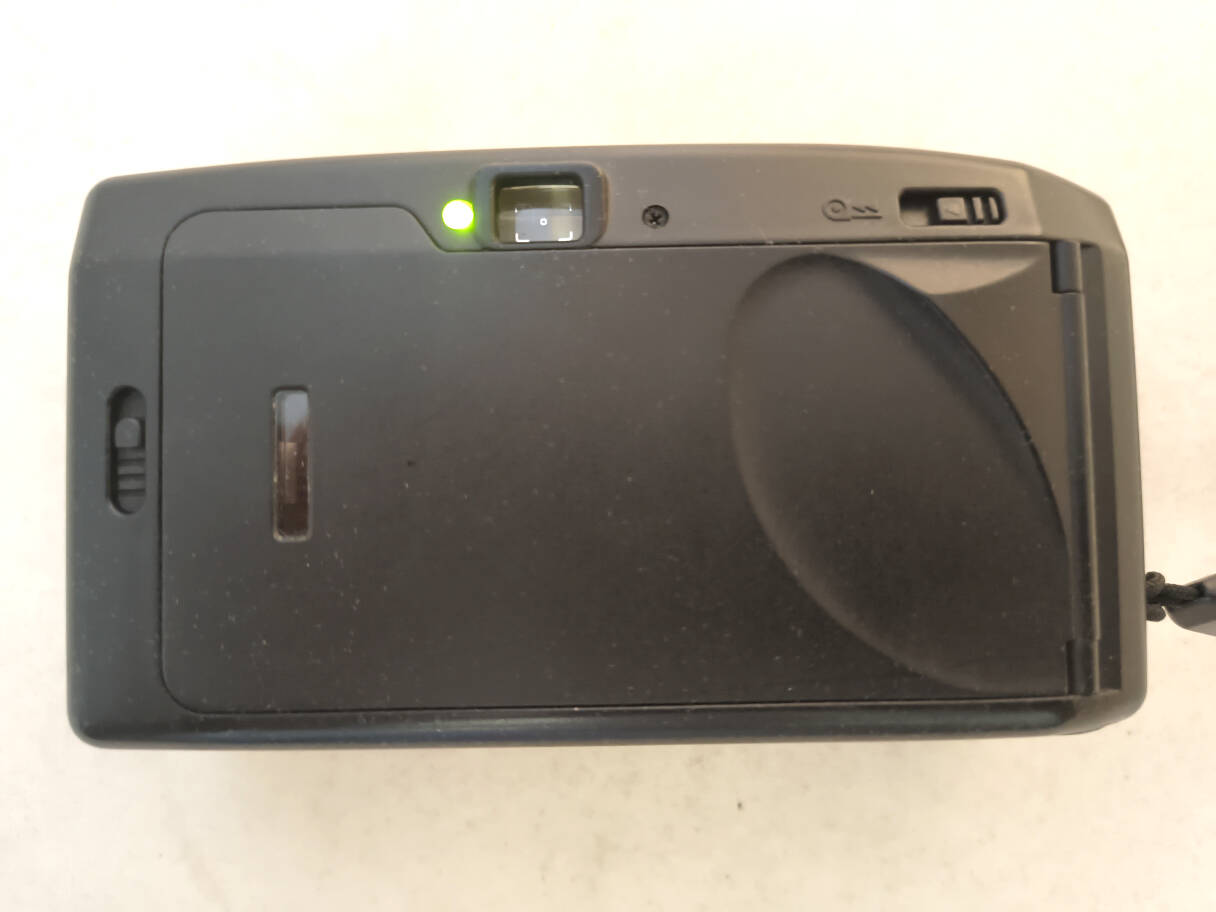

Back view. Viewer with flash charge lamp. Rewind switch. Film type window.

jpg/maginon_junior_af1_IMG_20260719_145500982.jpg

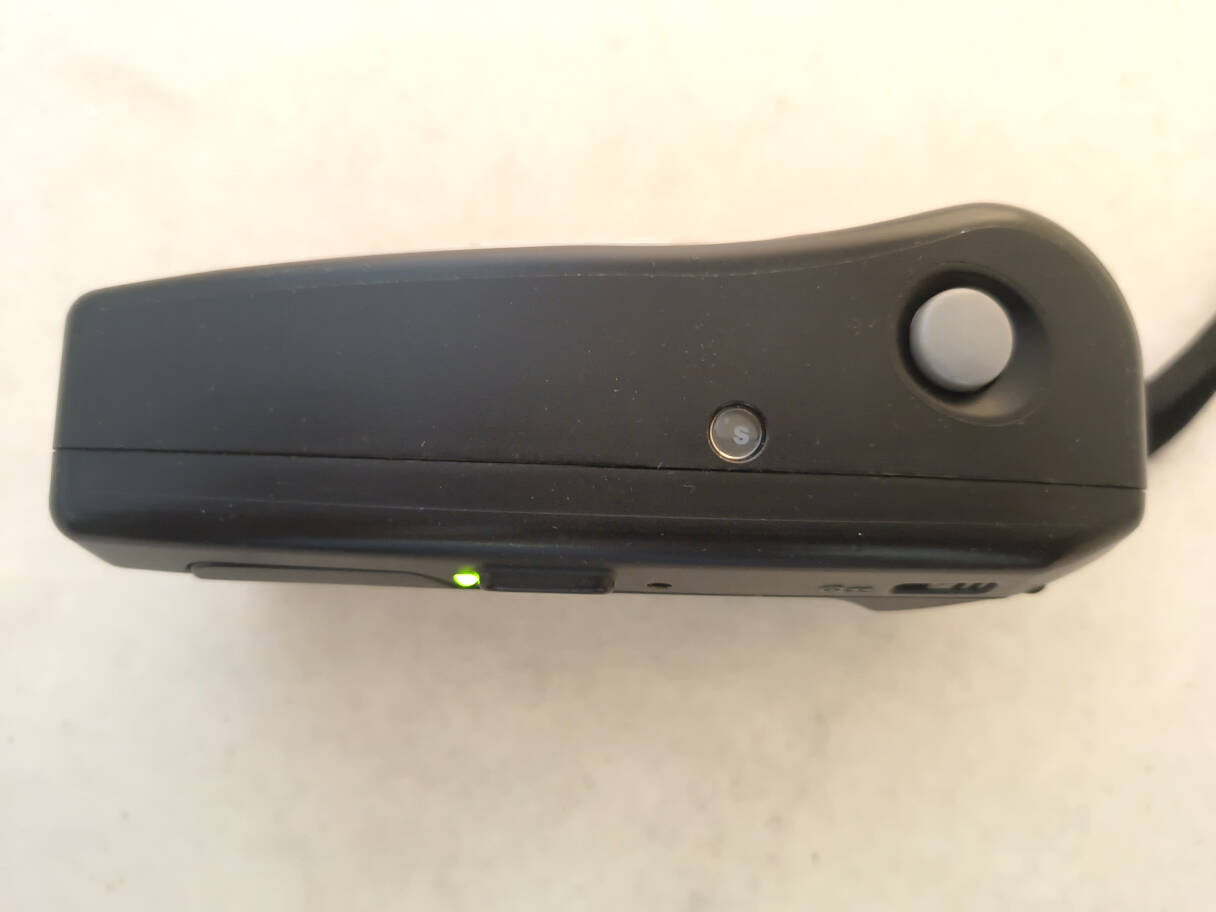

Seen from above. Counter. Shutter release.

jpg/maginon_junior_af1_IMG_20260719_145517695.jpg

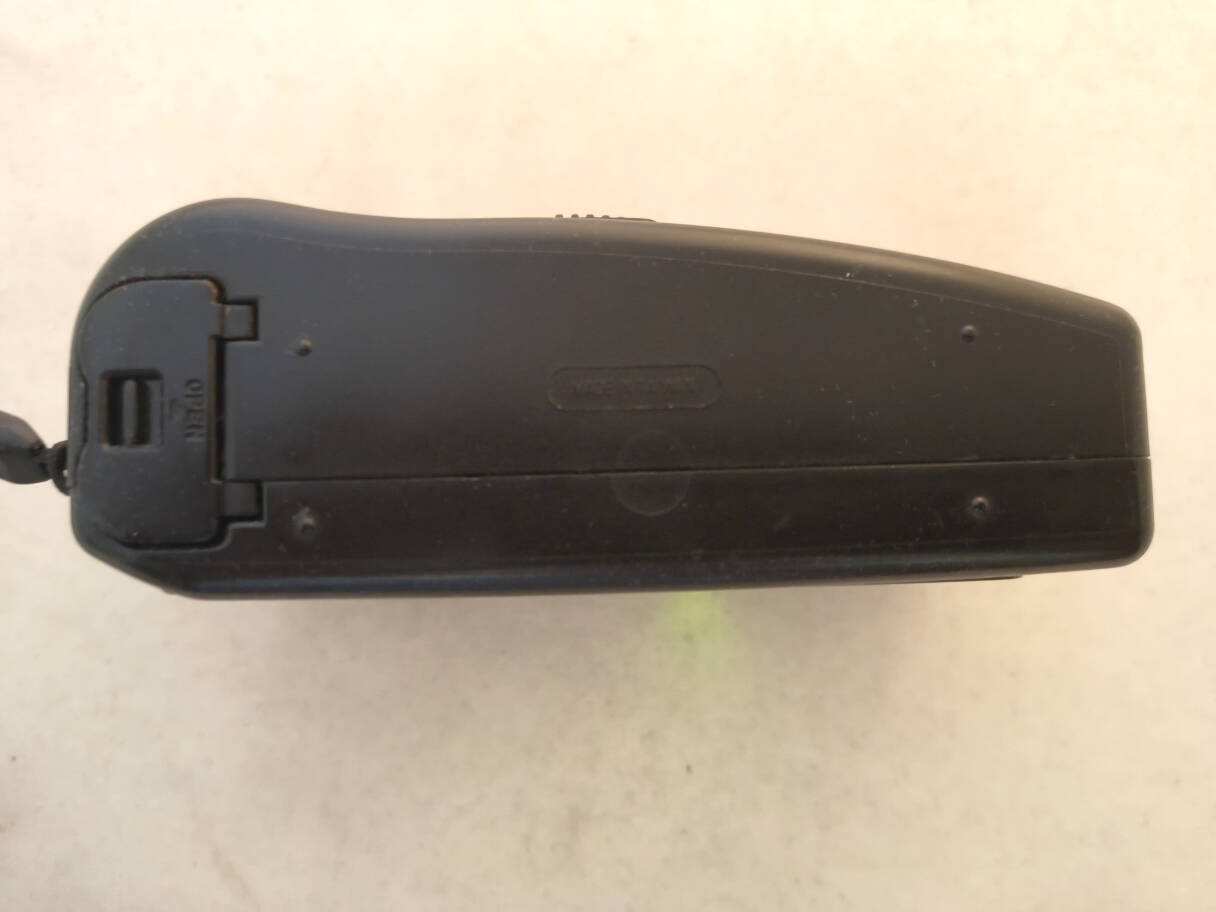

Seen from below. Battery compartment (takes 2 AA batteries).

jpg/maginon_junior_af1_IMG_20260719_145609080.jpg

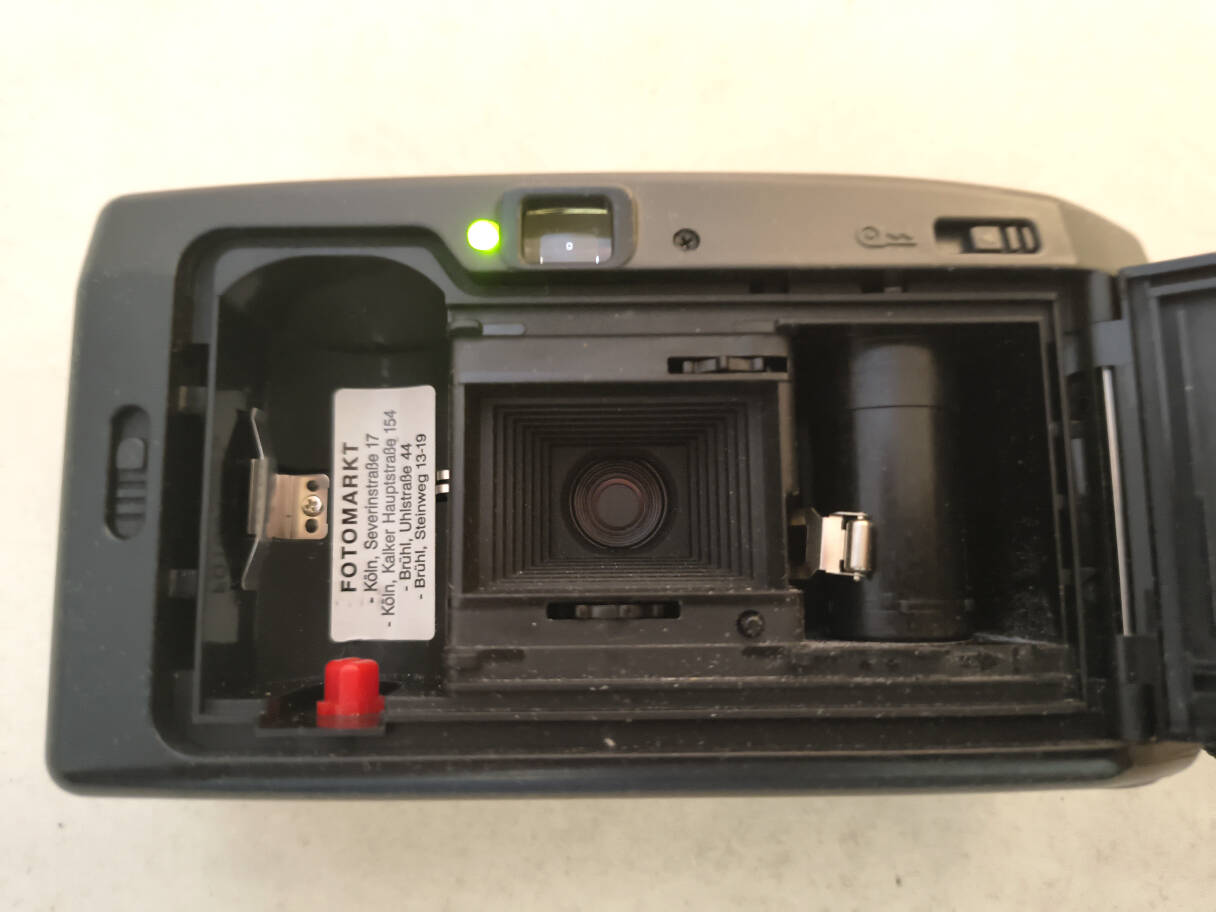

Film compartment open.

jpg/maginon_junior_af1_IMG_20260719_144929913.jpg

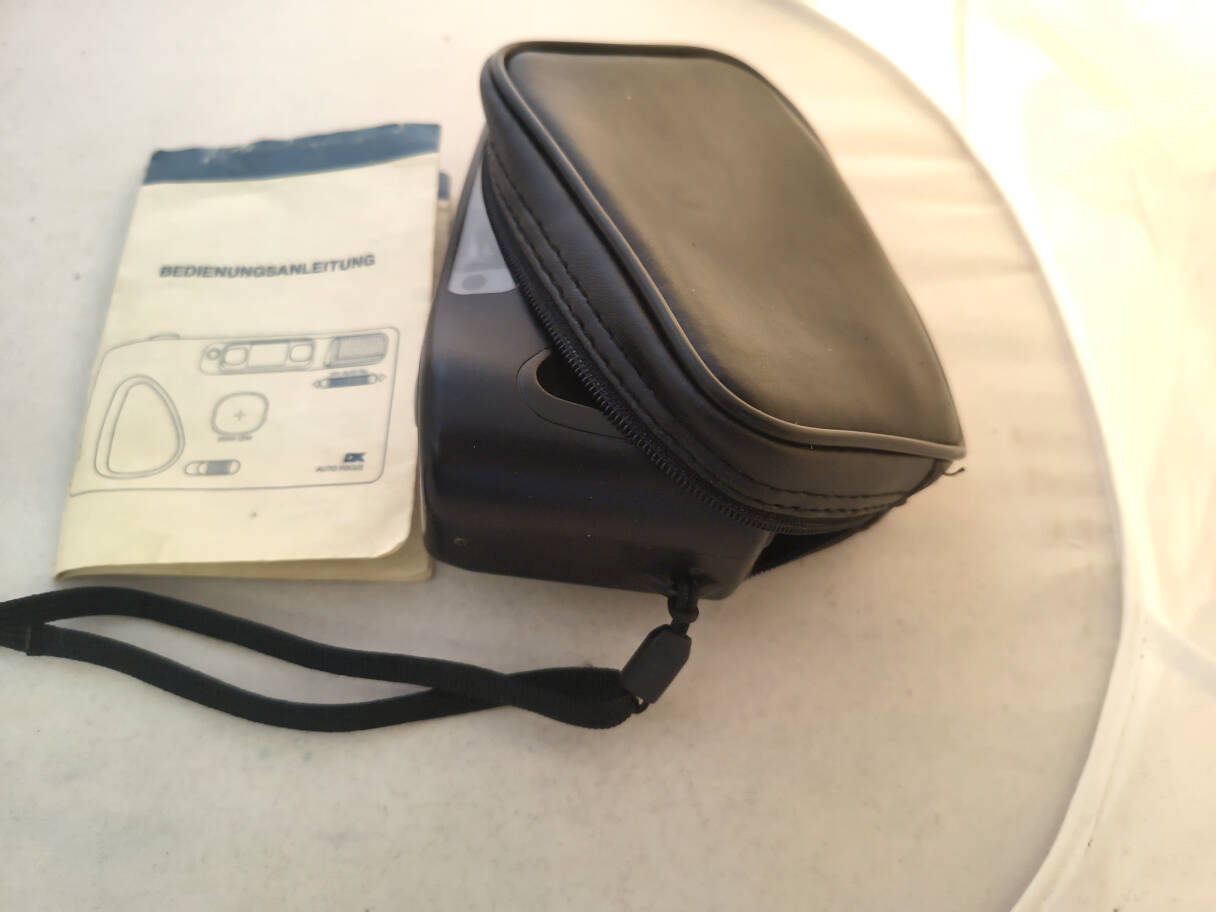

Original pouch and instructions.

jpg/maginon_junior_af1_IMG_20260719_145229236.jpg

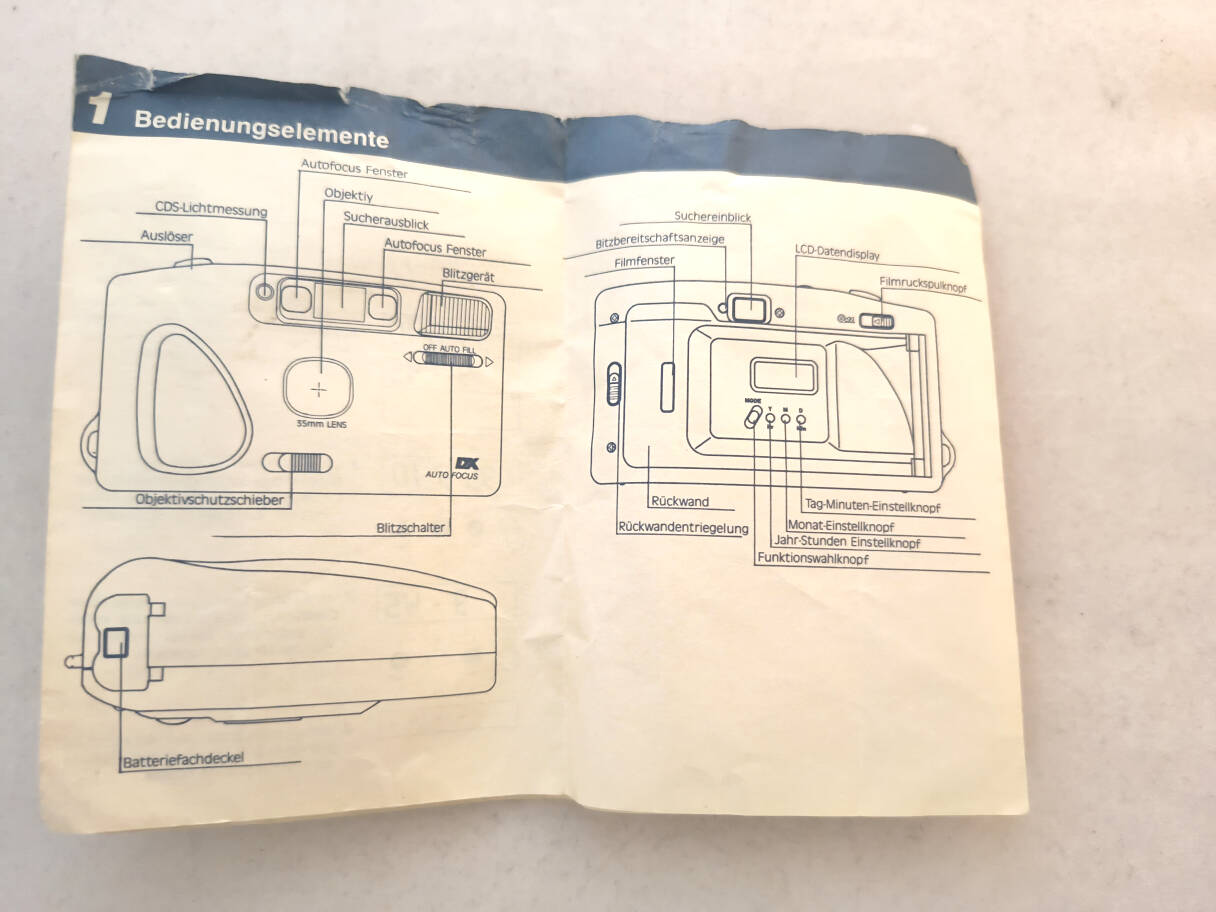

Instructions in German.

This camera is a basic point and shoot. You slide it open and push the shutter, that's all. There 3 flash modes, automatic, off and on.. The lens doesn't move, it's autofocus nevertheless. But it gets everything right. Point and shoot as basic as possible.
