135compact.com       35mm ultra compact cameras       Braun trend AF-M

This is a very basic compact camera, probably not an ultra compact one. I got it for next to nothing on a flea market, so I tested it nevertheless. There is nearly no information about this camera. It's from the 1990s and has no features.

34mm F4.5 lens, min. focus ?m
Focus range and flash indication in the viewerfinder window
Size 125x73x43,  Weight 324 gr. batteries included
auto DX ISO, auto wind, autofocus and AE

jpg/braun_trend_af_m_IMG_9633.JPG

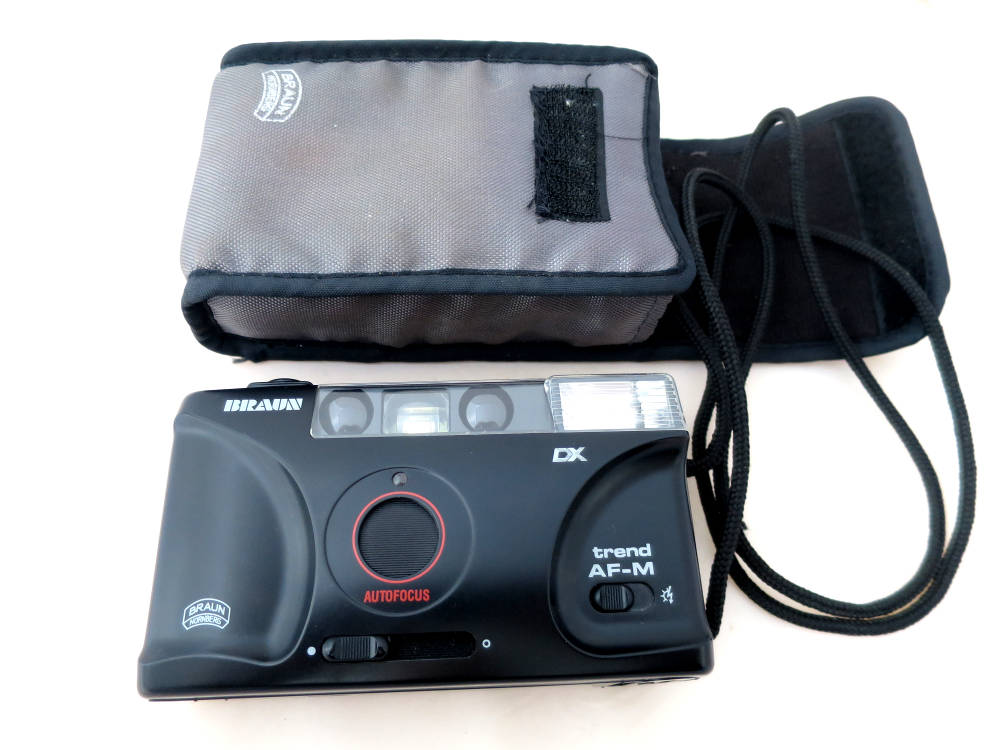

Front closed and case.

jpg/braun_trend_af_m_IMG_9636.JPG
Back view. Camera OK lamp, flash charging lamp. Viewer.

jpg/braun_trend_af_m_IMG_9635.JPG

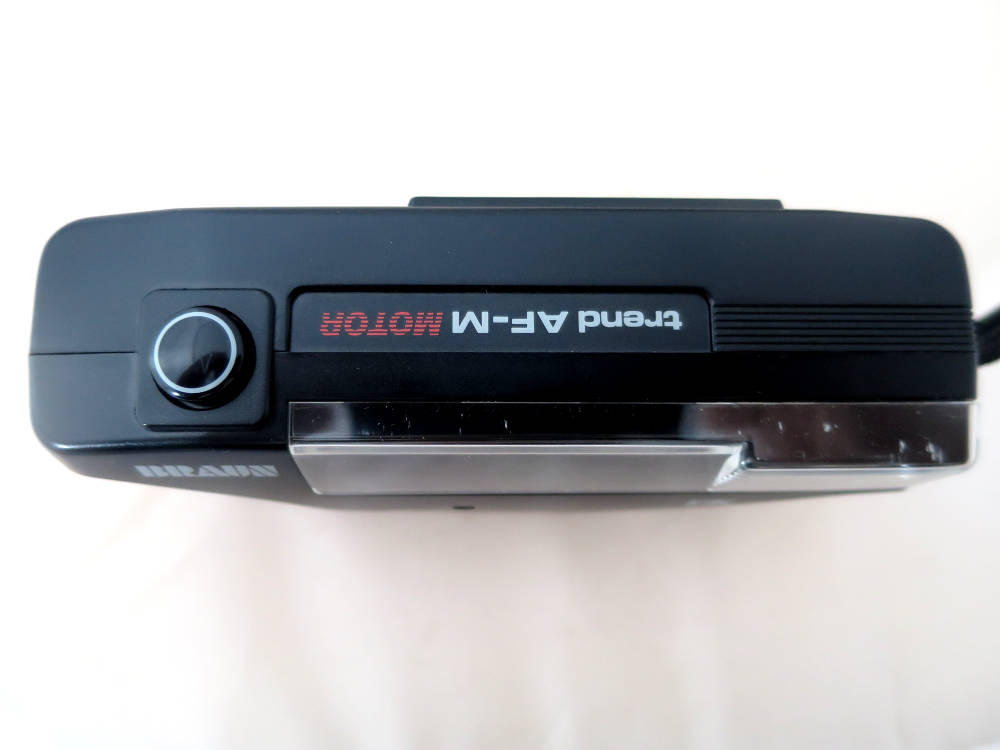

Seen from above. Just a shutter button.

jpg/braun_trend_af_m_IMG_9637.JPG

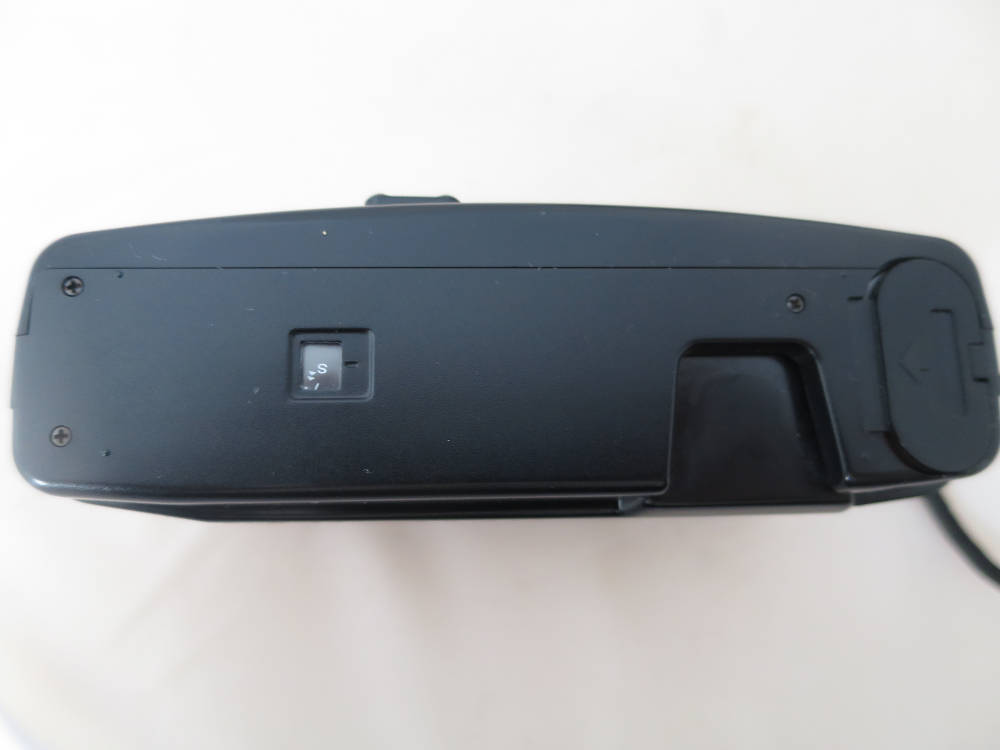

Seen from below. Film counter. Battery compartment (takes 2 AA batteries). No tripod socket.

jpg/braun_trend_af_m_IMG_9640.JPG
Camera open. Button to force the flash.

jpg/braun_trend_af_m_IMG_9639.JPG
Film compartment open.

This camera is incredibly basic. You slide it open and push the shutter, that's all. There are no features except forcing flash in backlight situations. All the rest is all automatic. The camera indicates focus range and flash in the viewer. The lens doesn't move and you don't hear the focussing. But it gets everything right. Point and shoot as basic as possible.
